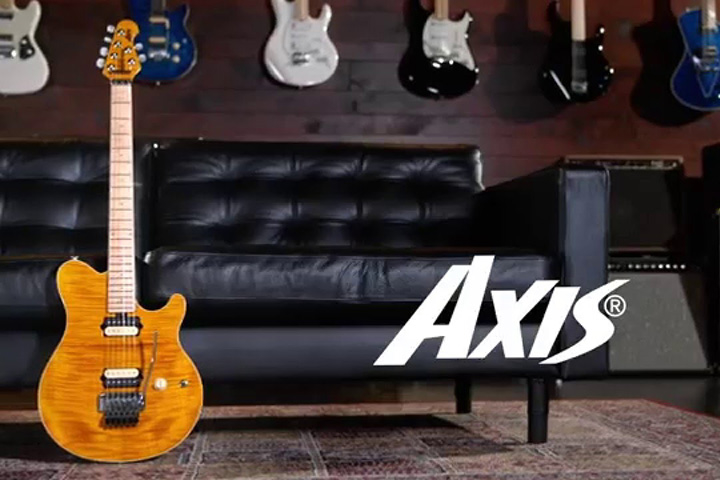

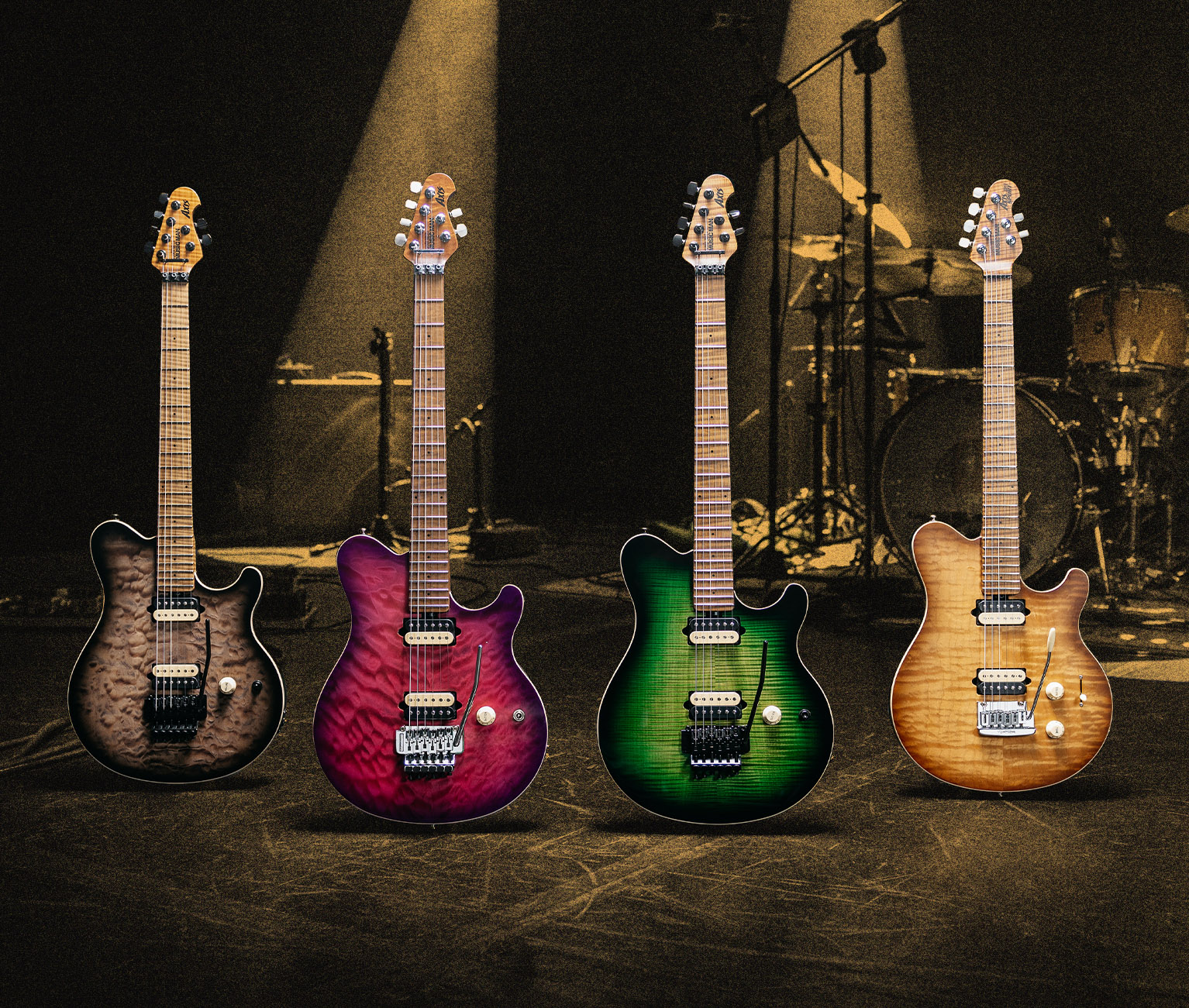

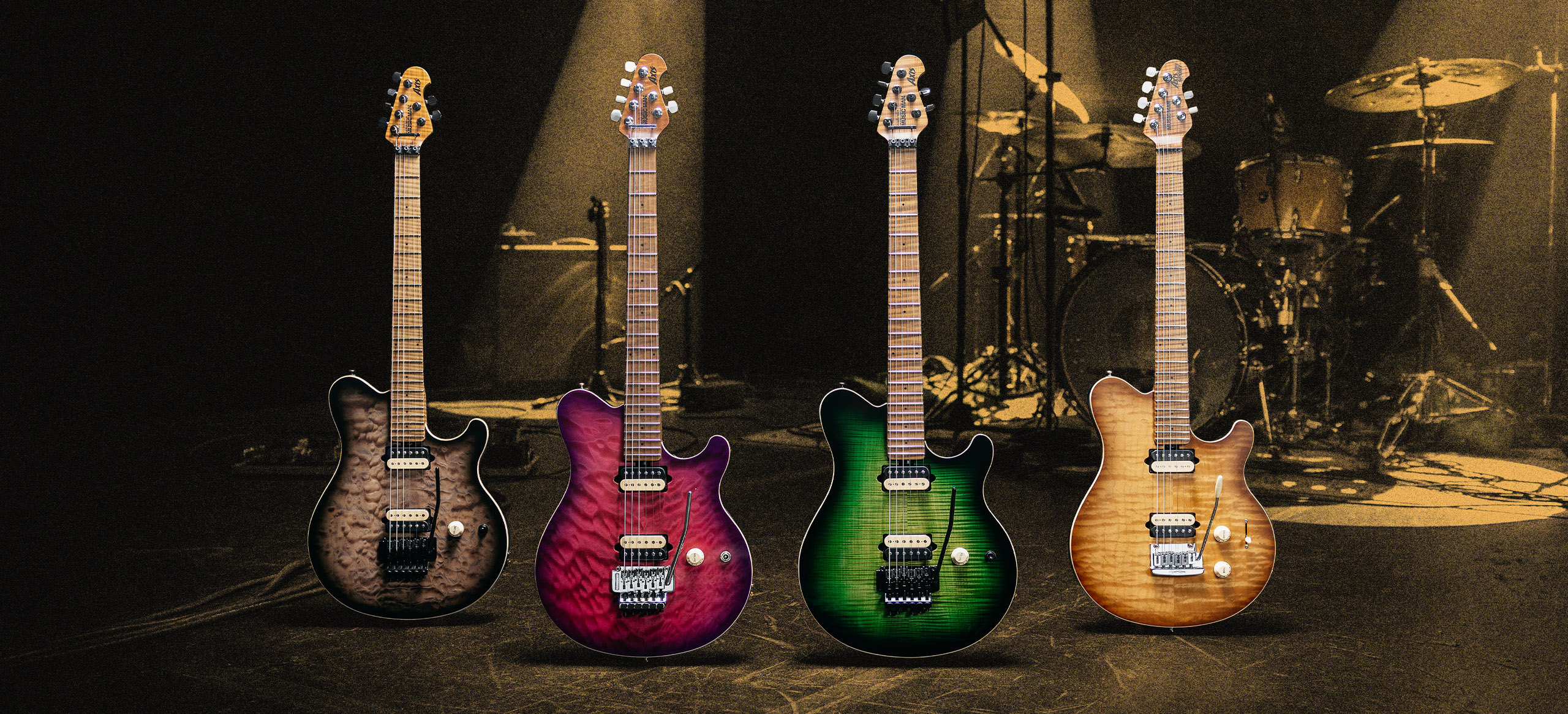

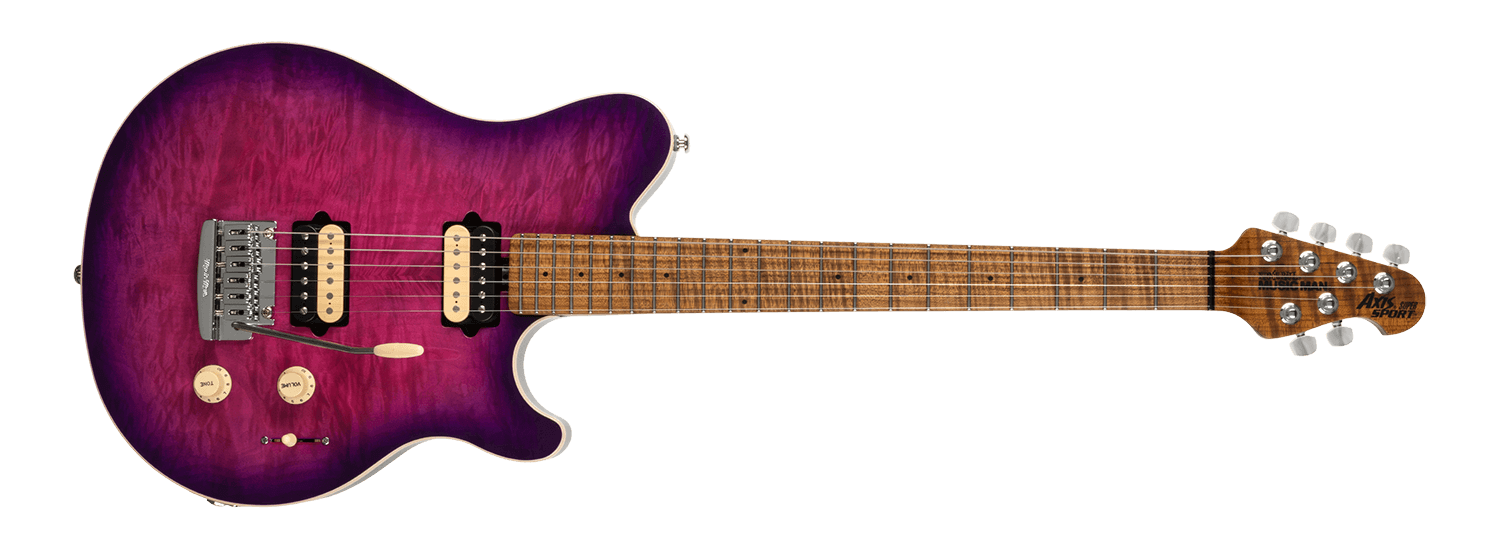

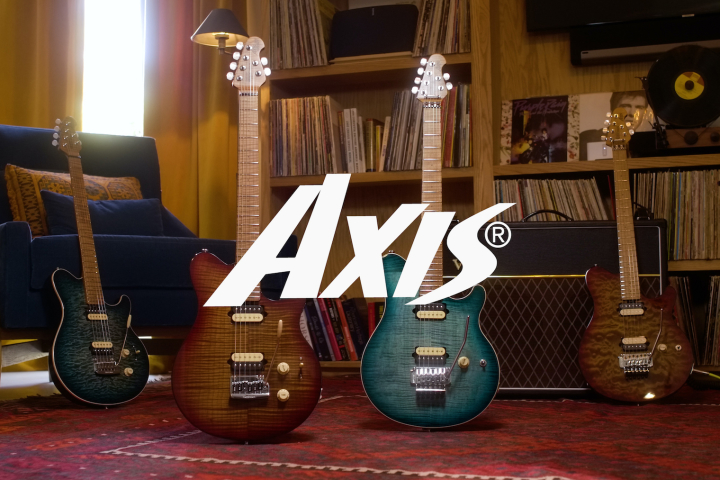

The Axis guitar is offered with a roasted, figured maple neck, 22 stainless steel frets, in four exciting new finishes: Honey Pot, Matcha Green, Charcoal Cloud, and Olallieberry. The Axis retains the features that have made it a true classic, such as the ever-comfortable asymmetric neck shape, double-locking tremolo, and proprietary DiMarzio humbucking pickups. Available with your choice of flame or quilt maple top over a basswood body, this tonewood/pickup combination is a perfect recipe for hard-edge rock tones but also delivers a subtle dynamic response at lower volume levels when needed.
Matcha - Flame
Matcha - Quilt
Honey Pot - Flame
Honey Pot - Quilt
Charcoal Cloud - Flame
Charcoal Cloud - Quilt
Ollalieberry - Flame
Ollalieberry - Quilt

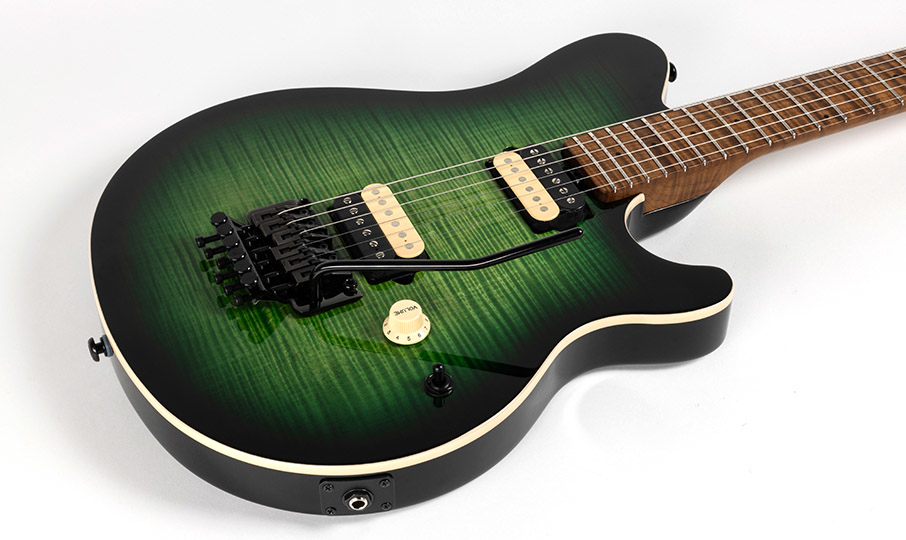

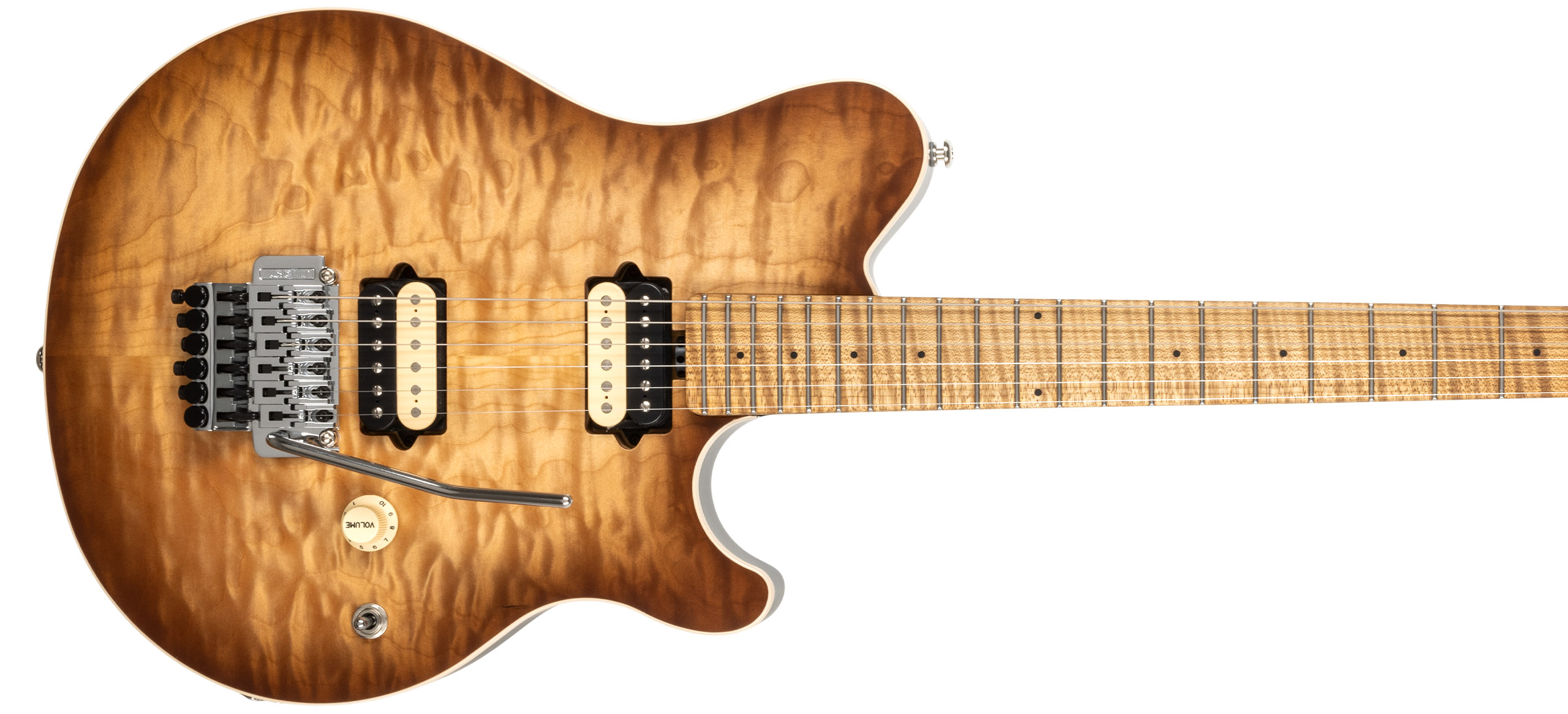

The Axis guitar features a perfectly balanced, single-cutaway body design that allows unparalleled access to all 22 stainless frets. The roasted maple neck with an asymmetric custom neck carve provides an ultra-comfortable playing experience.

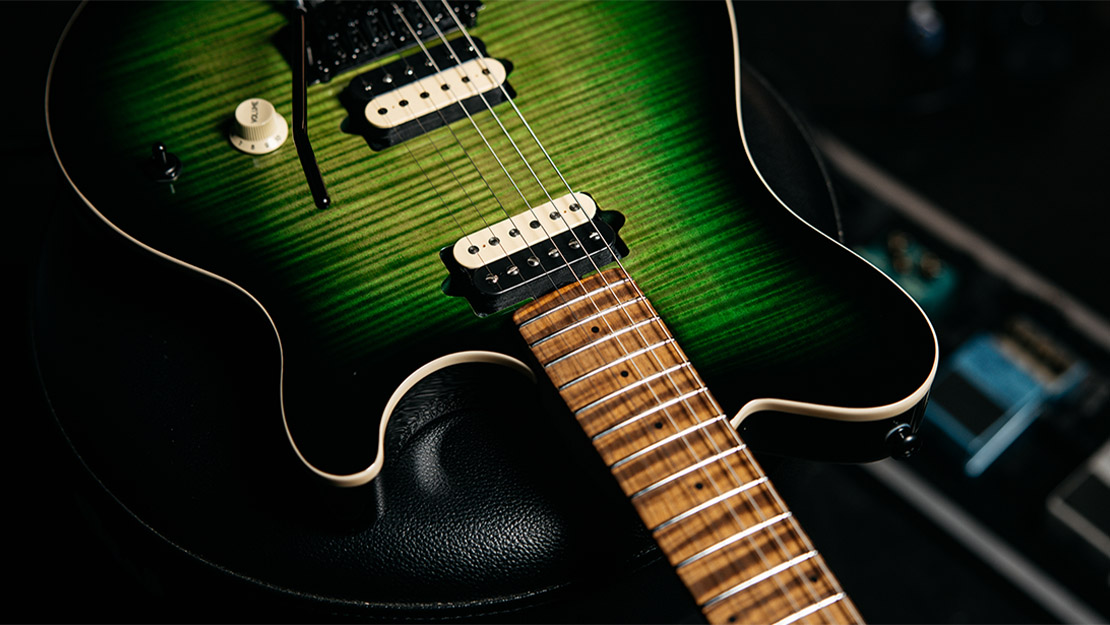

The back profile thickness is off-center towards the bass side of the neck and thins out near the treble side of the neck, allowing for a more comfortable playing experience under the fingertips.

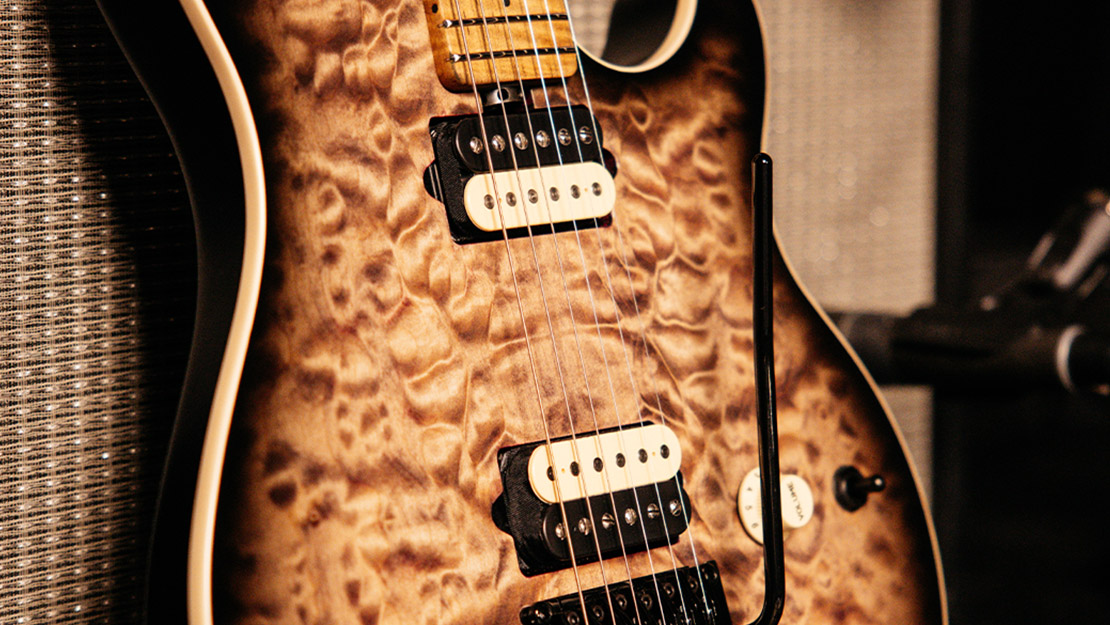

Proprietary humbucking pickups are custom-designed for the Axis guitar

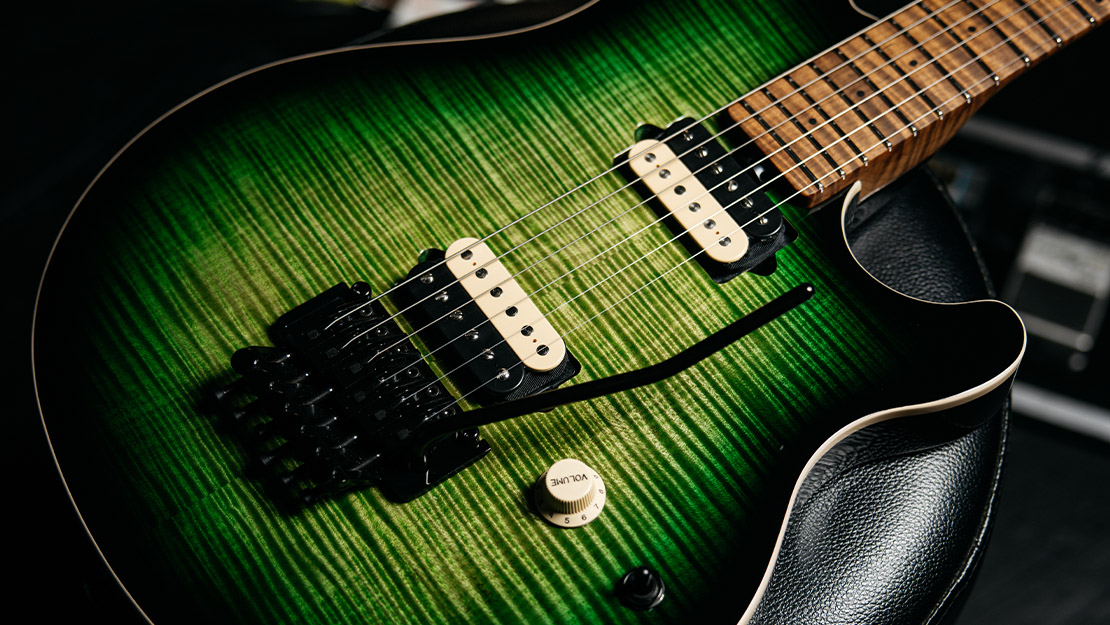

Custom finishes come with either black or chrome hardware, including tremolo, toggle switch, and tuning machines

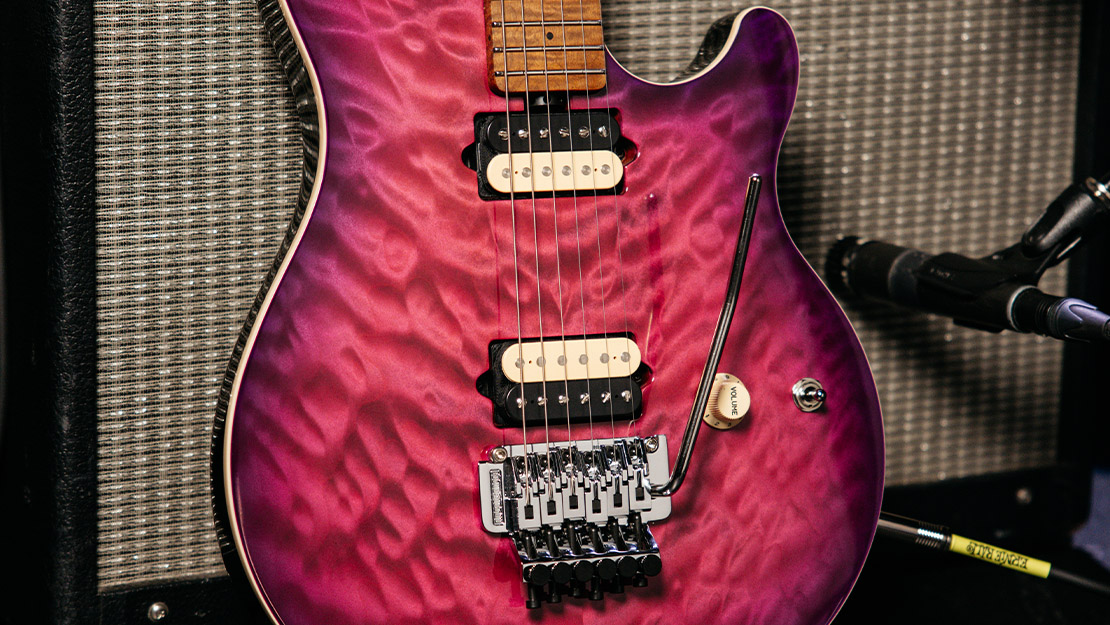

Hand-selected body and neck woods are sustainably sourced from our network of hardwood suppliers worldwide. Basswood and maple tonewoods are individually chosen and matched for their beautiful appearance and rich tonal qualities.
| Specifications | Axis |
|---|---|
| Model | Axis |
| Size | 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long) |
| Body Wood | Basswood with bookmatched figured maple top |
| Body Finish | High gloss polyester |
| Body Colors | Choice of flame or quilt top |
| Body Bindings | Binding - Cream |

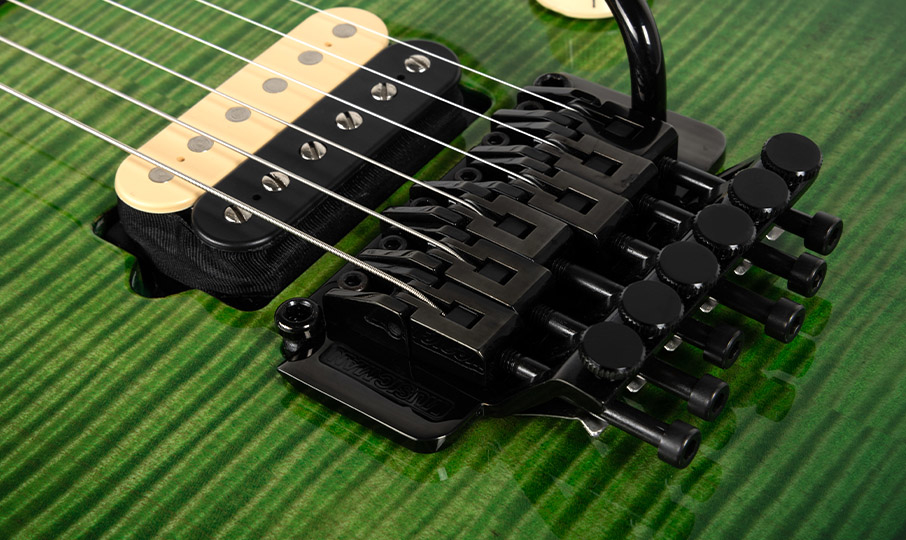

| Bridge | Music Man® double locking tremolo with fine tuners; lowers pitch only |
| Scale Length | 25-1/2" (64.8 cm) |
| Neck Radius | 10" (25.4 cm) |

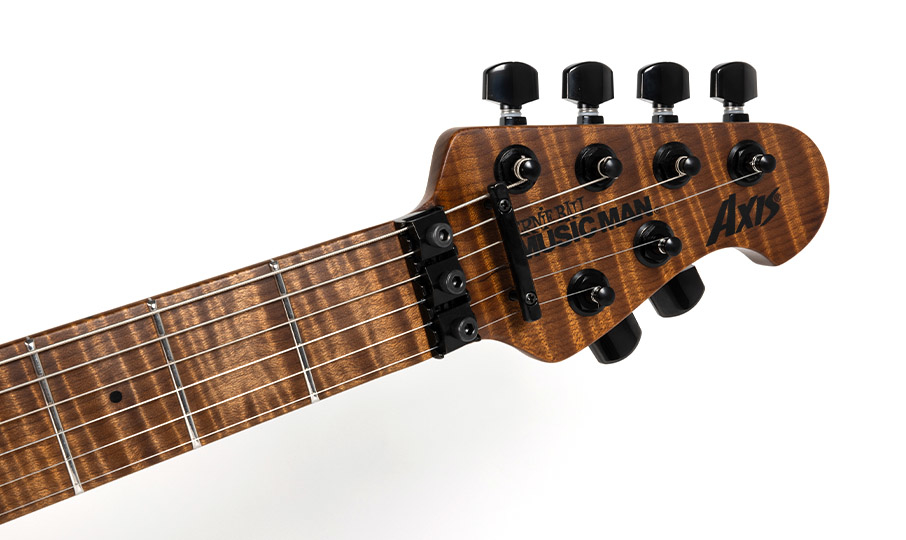

| Headstock Size | Only 5-7/8" (14.9 cm) long |
| Frets | 22 - High profile, medium width stainless steel |
| Neck Width | 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret |
| Neck Wood | Roasted Maple |
| Fingerboard | Figured Roasted Maple |
| Neck Finish | Gunstock oil and hand-rubbed special wax blend |
| Neck Colors | Roasted Maple |
| Tuning Machines | Schaller M6LA with pearl buttons |
| Truss Rod | Adjustable - no component or string removal |
| Neck Attachment | 5 bolts - Sculpted neck joint allows smooth access to higher frets |
| Electronic Shielding | Graphite acrylic resin coated body cavity and aluminum lined control cover |
| Controls | 500kohm volume pot |
| Switching | 3-way toggle pickup selector |
| Pickups | HH - 2 DiMarzio custom humbucking |
| Left Handed | No |
| Strings | 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239) |
