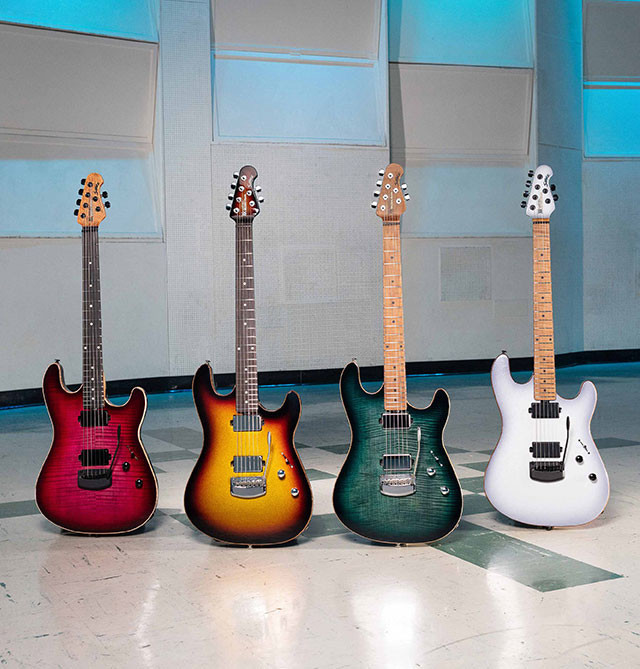

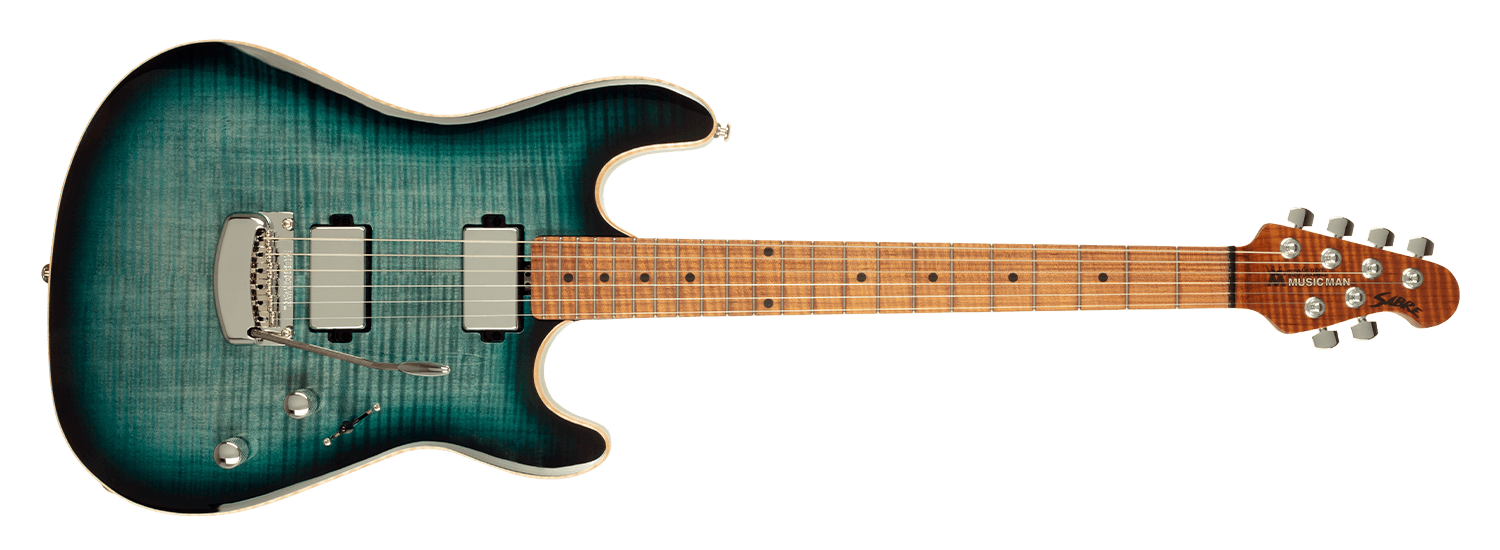

The Ernie Ball Music Man Sabre HT guitar blends the classic Sabre design with advanced features. It includes custom Music Man HT pickup technology, developed from extensive guitar string research, delivering dynamic responsiveness. The HT bridge pickup features heat-treated pole pieces and a large ceramic magnet for high-output, enhanced high-frequency harmonics, and touch sensitivity. The ceramic-based neck humbucker is designed to complement the bridge pickup’s characteristics. Additional features include a push-push adjustable 20dB boost and transparent buffered output for consistent tonality across all volume levels. The Sabre HT boasts a contoured Okoume body, thick flame maple top and is available with roasted figured maple neck options, along with 22 stainless steel frets for exceptional durability and playability. In addition, the electronics package includes a push-push adjustable 20dB boost function and a transparent buffered output for complete tonal consistency wherever your volume control is set. In other respects, the Sabre HT shares many of the original Sabre guitar specifications but also features a contoured Okoume body with a thick book-matched plain or roasted maple top(depending on body color), plain and roasted maple neck options, and 22 stainless steel frets.
Outperforms normal spec pickups by providing extra output and excellent touch sensitivity
HT pickups display a more powerful bass response and expansion of higher frequency harmonics

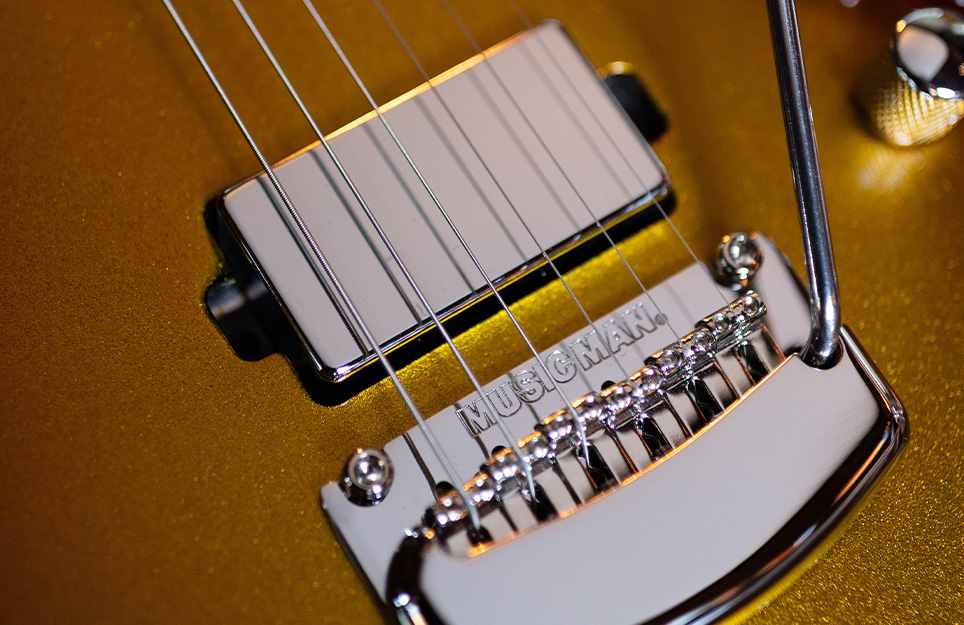

The Sabre HT (Heat Treated) bridge pickup outperforms normal spec pickups with more output, dynamic range, and excellent touch sensitivity. The pickup not only achieves ultra-high output but also garners a powerful low-end response while retaining a distinctively clean, clear tone and definition at lower volume levels.

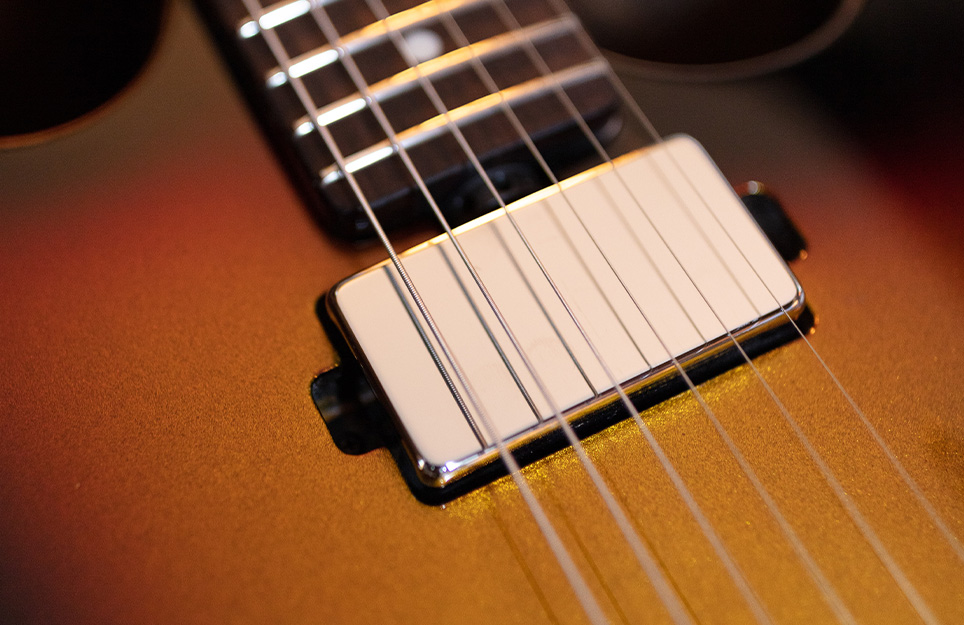

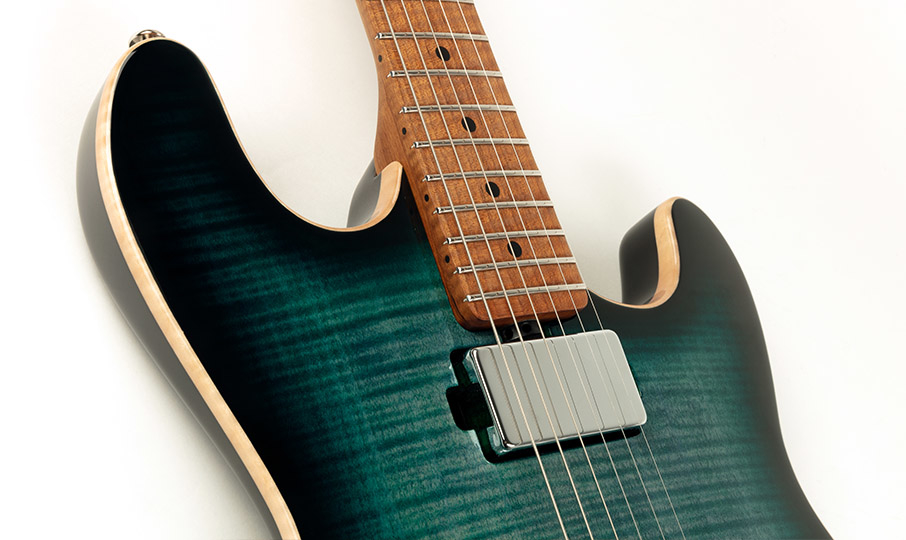

The custom-wound neck humbucker also features a large ceramic magnet and has been wound specifically to pair with the Sabre's HT bridge pickup.

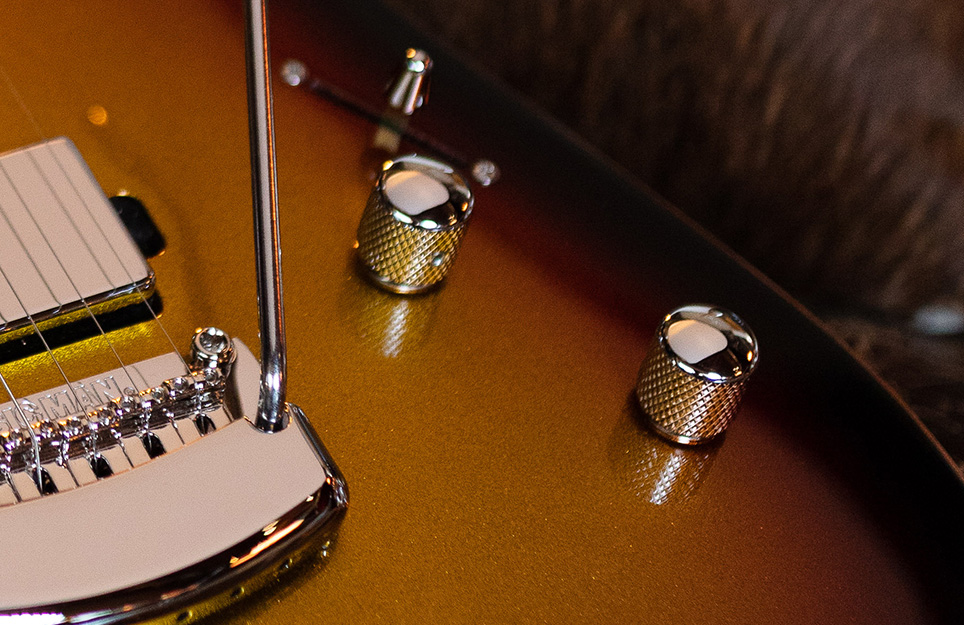

The Sabre's HT preamp boost is activated by a push-push volume knob and is factory set to 12db. Via a trim pot inside the control cavity, the preamp can be adjusted up to 20db if needed for heavy rhythm parts or high octane soloing whenever the user chooses.
No matter where your volume control is set, the transparent buffered output preserves your signal from high-frequency loss and keeps your tone bright and strong.
Specifications | Sabre HT |
---|---|
Model | Sabre HT |
Size | 12-7/8" wide, 1-3/4" thick, 38-1/8" long (32.7 cm wide, 4.4 cm thick, 96.8 cm long) |
Body Wood | Okoume with thick figured maple top |
Body Finish | High Gloss Polyester |
Body Bindings | Natural Wood |
Bridge | Music Man® Modern tremolo with crescent cover and vintage bent steel saddles |
Scale Length | 25.5" |
Neck Radius | 10" (25.4 cm) |

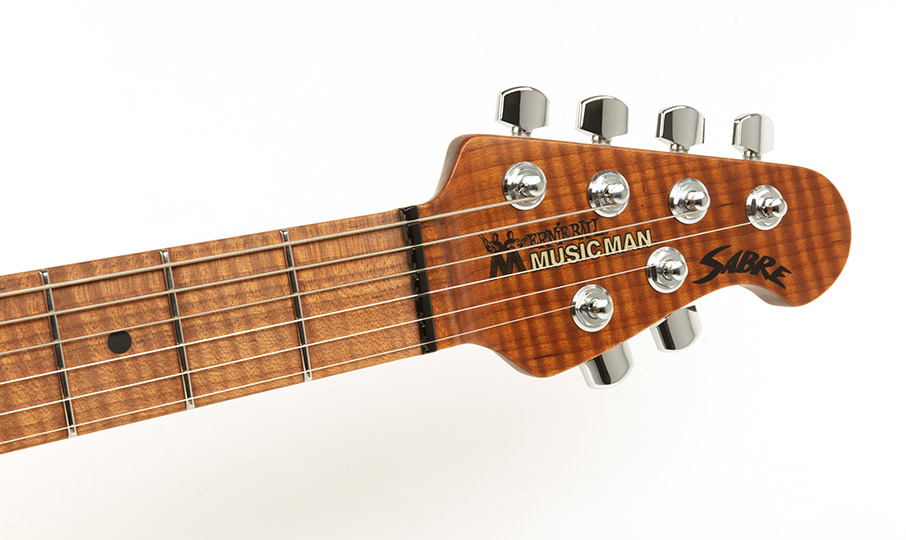

Headstock Size | 6-3/8" (16.2 cm) long |
Frets | 22 - High Profile Medium Width |
Neck Width | 1-11/16" (43.0 mm) at nut; 2-1/4" (56.9 mm) at last fret |
Neck Wood | Yucatan Blue & Raspberry - Roasted Figured Maple; Showtime / Snowy Night - Select Maple |
Fingerboard | Yucatan Blue & Raspberry - Roasted Figured Maple; Showtime - Rosewood; Snowy Night - Roasted Flame Maple |
Fret Markers | Dot |
Neck Finish | Yucatan Blue & Raspberry - Gunstock oil and hand-rubbed special wax blend; Showtime & Snowy Night - High Gloss Polyester |
Neck Colors | Yucatan Blue & Raspberry - Natural; Showtime & Snowy Night - Match body |
Tuning Machines | Schaller M6-IND locking |
Neck Attachment | 5 bolt, scuplpted neck joint |
Electronic Shielding | Graphite acrylic resin coated body cavity and aluminum control cover |

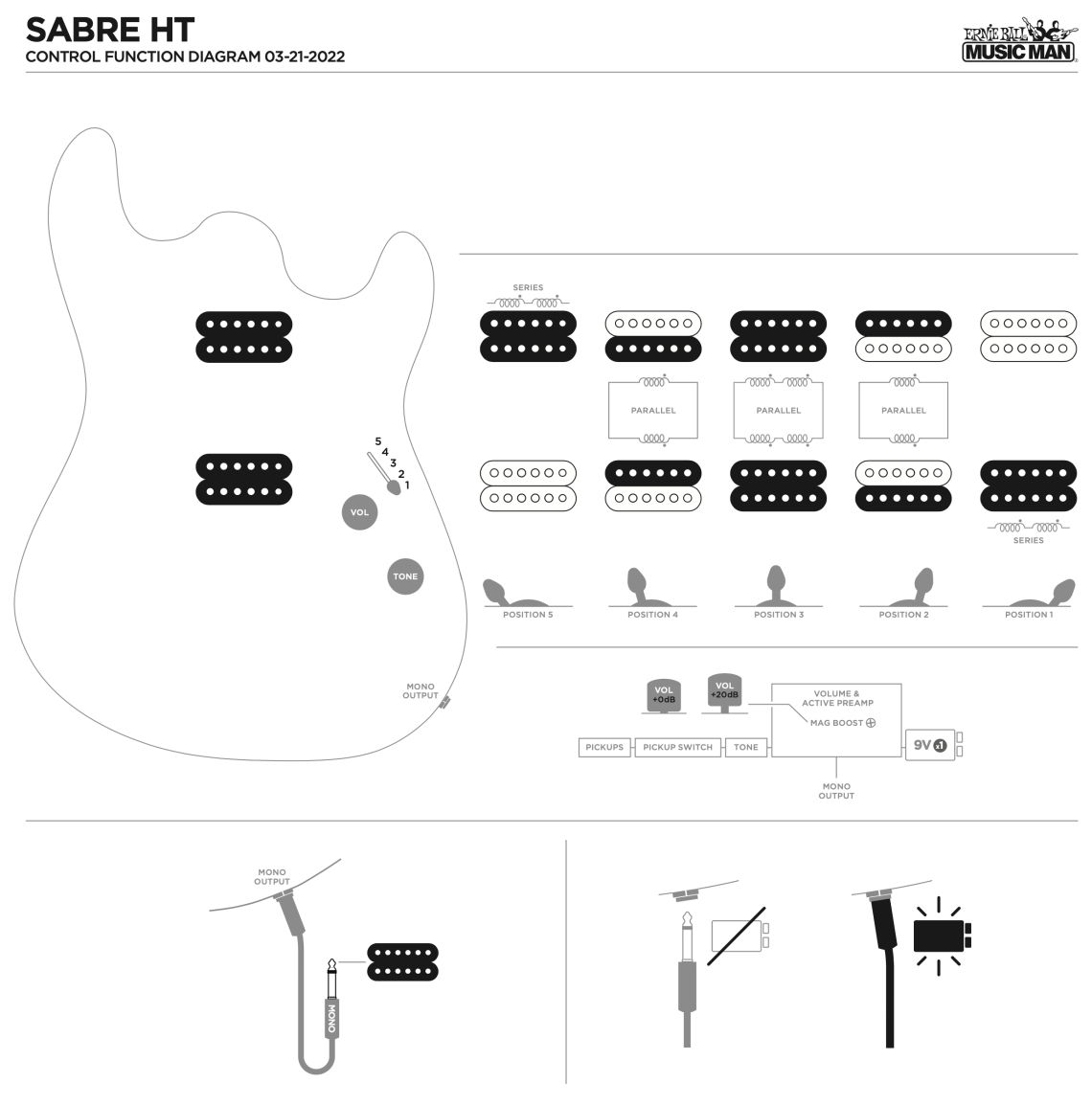

Controls | Volume knob with push/push switch for gain boost, tone knob, 5 way pickup selector switch. |
Switching | 5-way lever pickup selector; Push/push volume pot for boost |
Pickups | Bridge: Music Man® HT Humbucker - Neck: Music Man® Custom Wound Neck Humbucker |
Strings | 10p-13p-17p-26w-36w-46w (RPS 10 Slinkys #2240) |
