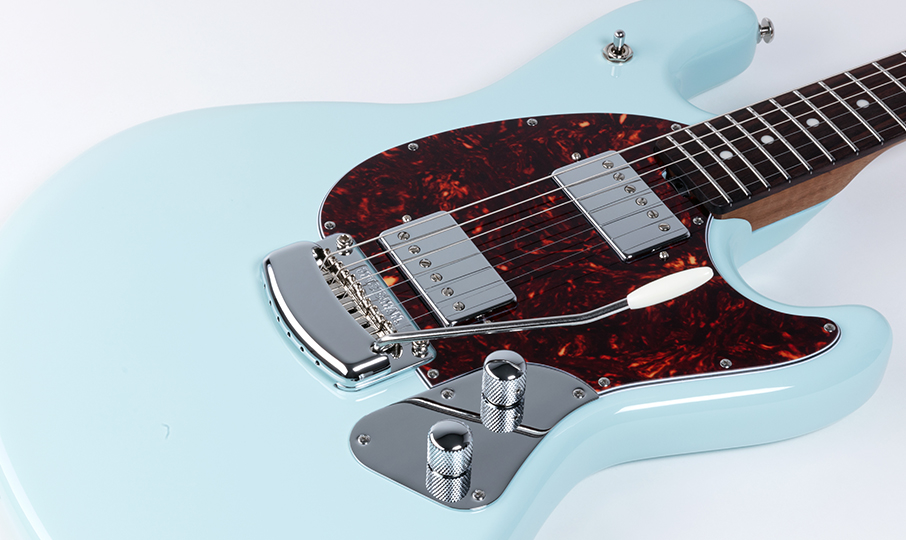

Drawing from the original 1970s Music Man designs, the StingRay RS features a lightweight Okoume body, passive electronics, and a super smooth modern tremolo for exceptional playability and performance. It's outfitted with Alnico 5 humbucking pickups, delivering a bold, powerful tone. The StingRay RS model includes a comfortable asymmetric neck made from roasted figured maple, with a rosewood or maple fingerboard. It also boasts locking Schaller tuners, a compensated nut and 22 stainless steel frets, ensuring durability and superb tuning stability up and down the fretboard.

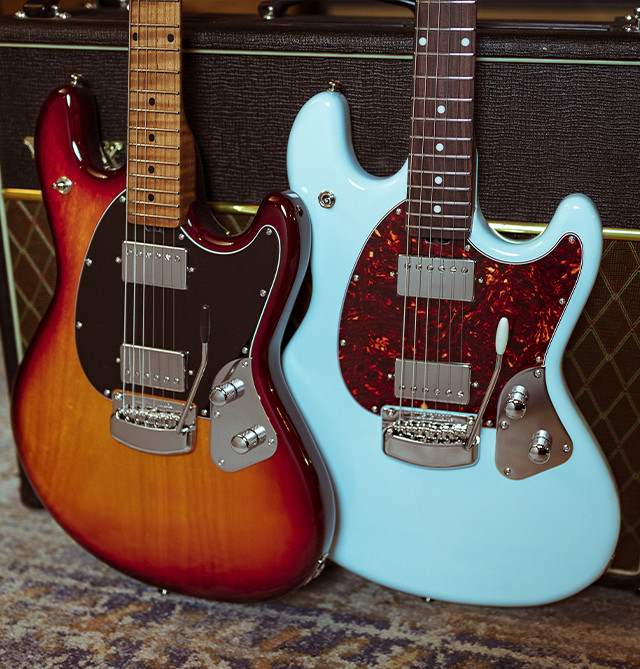

Burnt Amber
Powder Blue
| Specifications | StingRay RS |
|---|---|
| Model | StingRay RS |
| Size | 14-1/16" wide, 1-5/8" thick, 39-1/4" long (35.7 cm wide, 4.1 cm thick, 99.7 cm long) |
| Body Wood | Okoume |
| Body Finish | High gloss polyester |
| Body Colors | Burnt Amber, Powder Blue |

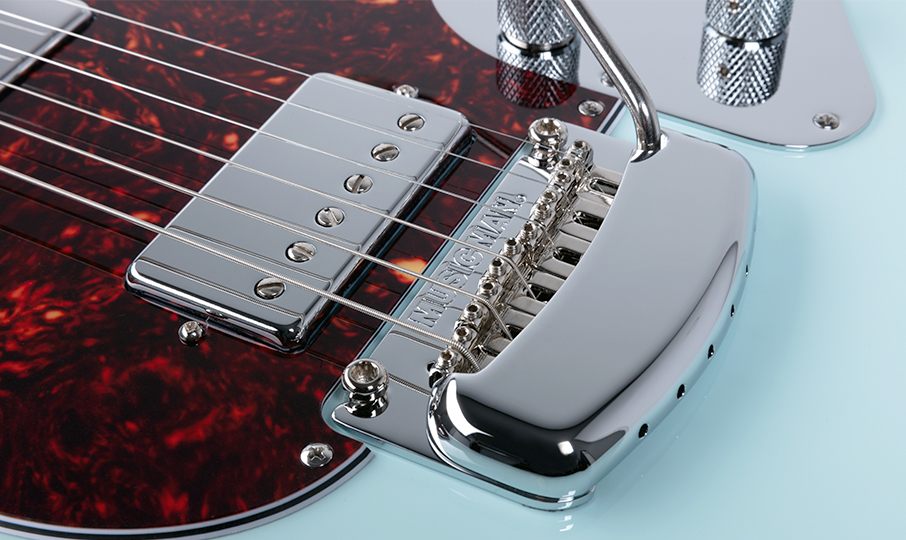

| Bridge | Music Man® Modern tremolo with vintage bent steel saddles |
| Pickguard | Black - Burnt Amber; Shell - Powder Blue |
| Scale Length | 25-1/2" (64.8 cm) |
| Neck Radius | 10" (25.4 cm) |
| Headstock Size | 6-3/8" (16.2 cm) long |
| Frets | 22 - High profile, medium width, Stainless Steel |
| Neck Width | 1-5/8" (41.3 mm) at nut, 2-1/4" (56.9 mm) at last fret |
| Neck Wood | Roasted figured maple on all except the Stealth Black (standard maple) |
| Fingerboard | Roasted maple - Burnt Amber; Rosewood - Powder Blue |
| Fret Markers | 1/4" Black or White Face dots |
| Neck Finish | Hand rubbed oil and wax finish |
| Tuning Machines | Schaller M6-IND locking |
| Truss Rod | Adjustable - no component or string removal |
| Neck Attachment | 5 bolts - Sculpted neck joint allows smooth access to higher frets |
| Electronic Shielding | Chrome plated aluminum control cover (Black on Stealth) |
| Controls | 500kohm volume and tone - .022µF tone capacitor |

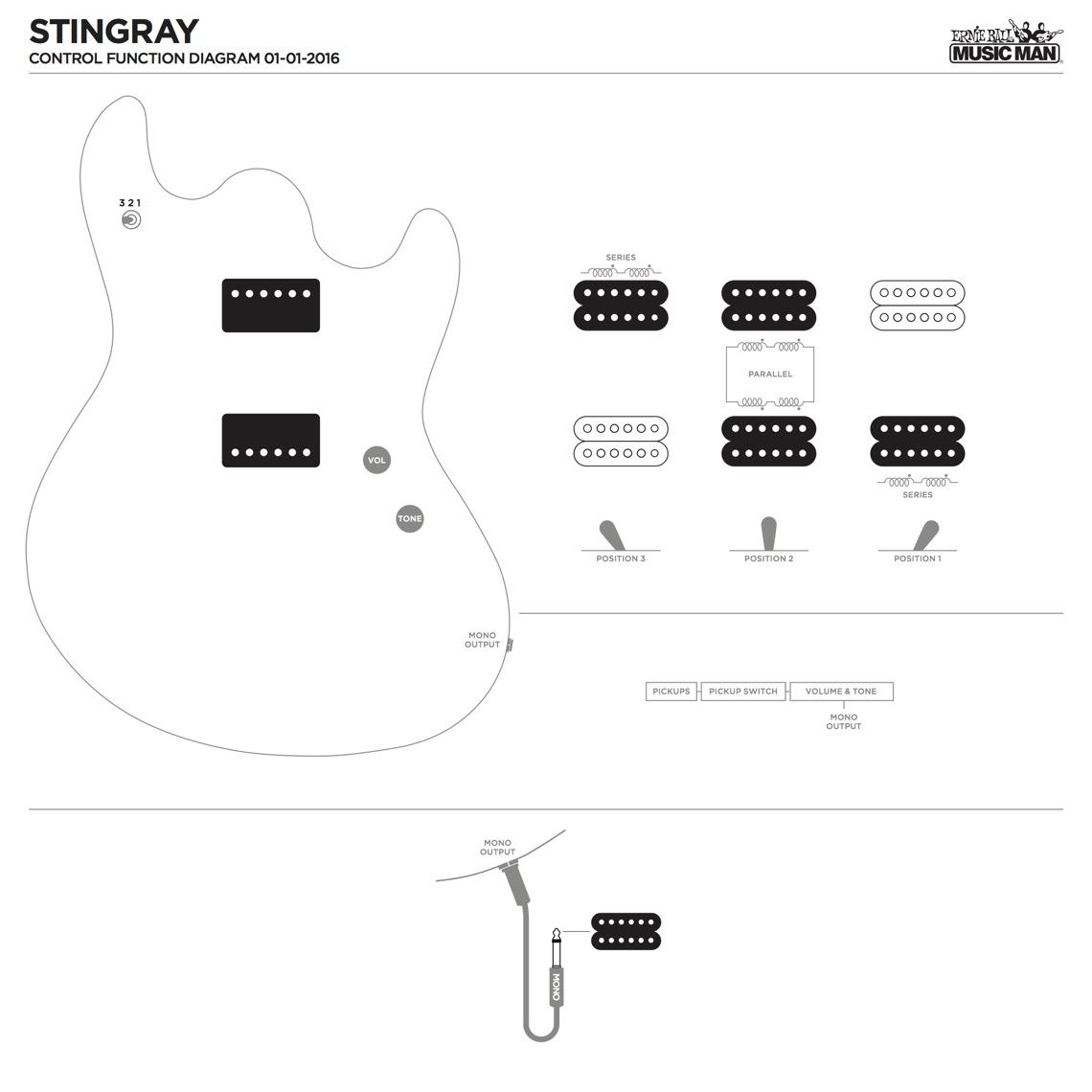

| Switching | 3-way toggle pickup selector |
| Pickups | HH - 2 Music Man® custom wound humbucking with chrome covers |
| Left Handed | No |
| Strings | 10p-13p-17p-26w-36w-46w (RPS 10 Slinkys #2240) |
